4K高清显示屏
-
无需辅助设备
-
宽视角与多视点
-
高分辨率与清晰度
-
兼容2D/3D内容切换
-
无需辅助设备
无需佩戴3D眼镜或头显设备，可直接裸眼观看立体影像
-
宽视角与多视点
- 水平视角可达120度，支持多视点观看，不同角度仍能保持立体感。更自然的深度感知
-
深度感强，立体效果逼真
-模拟真实光线传播，使3D影像具有更强的纵深感和真实感。 超强视觉冲击力。
4K高清显示屏
-
高分辨率和清晰度
采用4K或更高分辨率显示技术，确保3D图像细腻、无摩尔纹干扰。
-
高亮度与低功耗
采用LED背光或Mini LED技术，提高亮度， 功耗更低，节能环保。
-
兼容2D/3D内容切换
应用广泛于广告传媒、医疗影像、工业设计、军事仿真等领域。
-

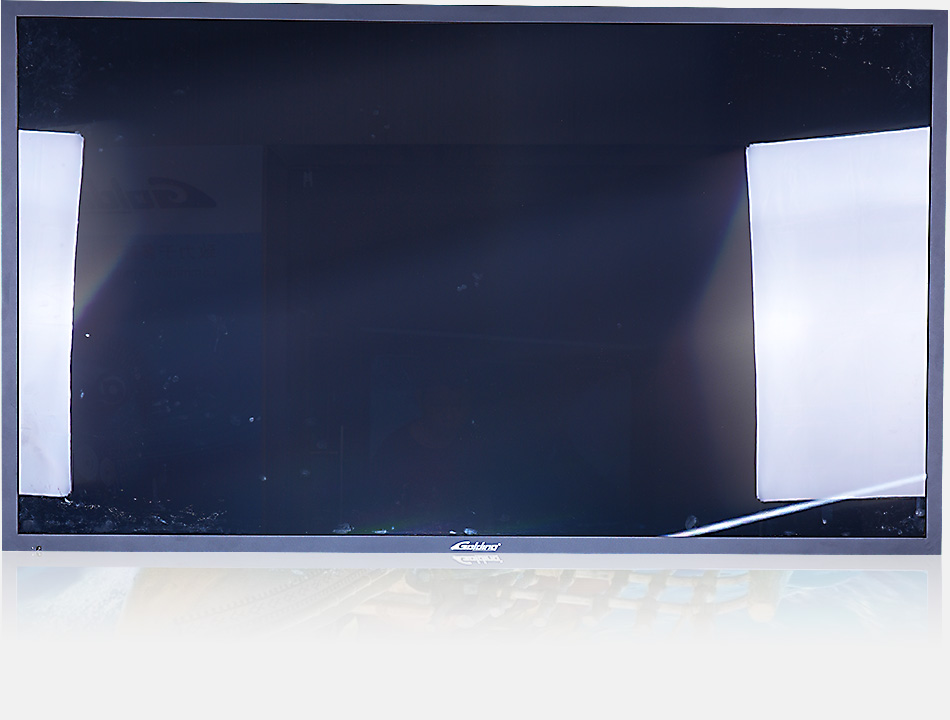

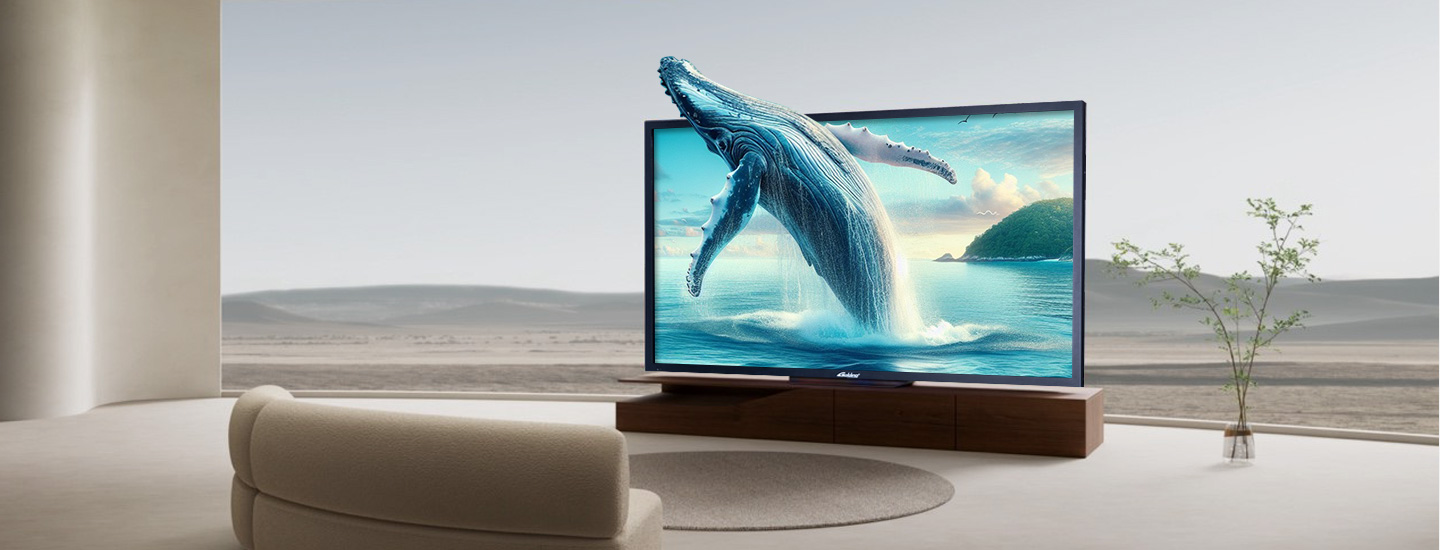

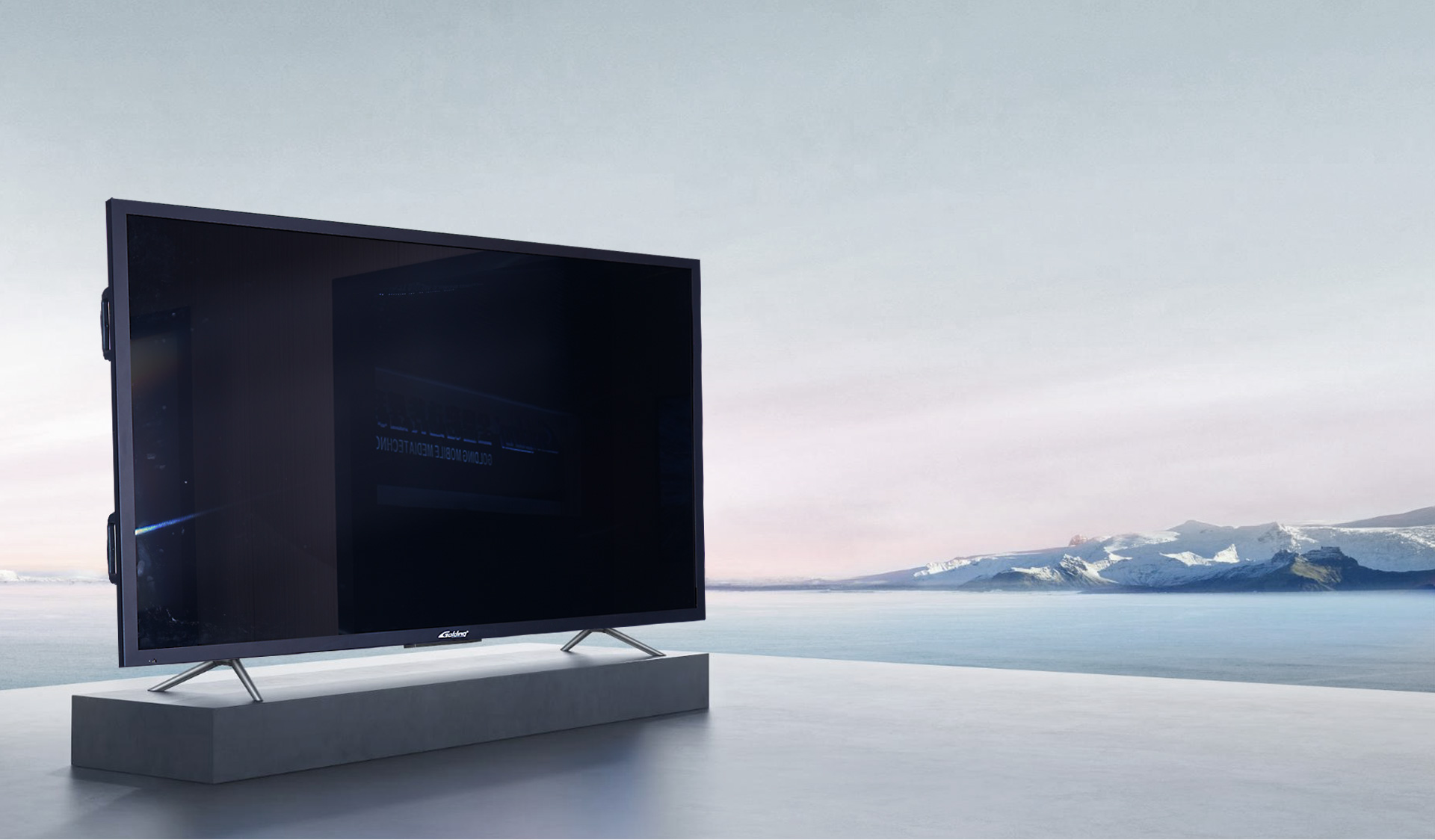

65寸祼眼3D显示器 86寸祼眼3D显示器
-
Configure Parameters
-
CPU
RK3399, Dual Cortex-A72 Large Core + Quad Cortex-A53 -
GPU
Quad-core ARM Mali-T 860MP4 high-performance GPU -
RAM
2G is standard -
ROM
Standard 16G standard -
System
Android 7. 1+
Panel Parameters
-
Panel Size
65 inches -
Liquid Crystal Type
LCD -
Backlit Form
Straight down -
Resolution
2D:3840×2160 3D:1280X 720 -
Maximum Brightness
450nit -
Contrast
5000:1 -
Viewing Angle
Up, down, left and right: 89°/89°/89°/89° -
Refresh Rate
60Hz -
Response time
8ms -
Chroma
1.07B
3D Display Technology
-
Optical Lenses
3D lenses -
Binocular Tracking
No, you don't -
3D Out Of the Screen
45cm -
3D display of field of view
60 degrees -
3D shows the optimal range
100cm-800cm
Functional Applications
-
WIFI
Set WIFI, support dual-band WIFI, single antenna -
Network Standard
Ethernet x 1 -
Playback Mode
Loop playback mode is supported -
Video Format
MP4、AV I、MKV -
Video Input
HDMI -
Image Format
JPG、JPEG -
Audio Format
MP3、WMA、AAC
Operating Environment/Power Supply
-
Service Life
5000hr -
Operating Temperature
0℃～ 40℃ -
Operating Humidity
20~80% RH (no condensation） -
Storage Temperature
-5℃～ 45℃ -
Store Humidity
20~ 90% RH (no condensation) -
Voltage
100~ 240VAC（50～ 60Hz） -
power Consumption
Max 235W
Installation and packaging
-
Appearance size (bare metal)
1484. 5*861. 5*92. 3mm -
Net Weight
70kg -
Gross Weight
85kg -
Installation
Wall mounting, mobile bracket (optional)
Configure Parameters
-
CPU
RK3399, dual Cortex-A72 large core + four Cortex-A53 -
GPU
Quad-core ARM Mali-T860MP4 high-performance GPU -
RAM
Standard 2G -
ROM
Standard 16G -
System
Android 7. 1+
Panel Parameters
-
Panel Size
86 inches -
Liquid Crystal Type
LCD -
Backlit Form
Direct style -
Resolution
2D：3 8 4 0 × 2 1 6 0 3D：1280X720 -
Maximum Brightness
450nit -
Contrast
3000:1 -
Viewing Angle
Up, down, left and right: 89°/89°/89°/89° -
Refresh Rate
60Hz -
Response time
8ms -
Chroma
1.07B
3D Display Technology
-
Optical Lenses
3D lenses -
Binocular Tracking
unnecessary -
3D Out Of the Screen
65cm -
3D display of field of view
60 degrees -
3D shows the optimal range
200cm-1000cm -
operating system
Supports Windows/Android dual systems
Functional Applications
-
WIFI
Set WIFI, support dual-band WIFI, single antenna -
Network Standard
Ethernet x 1 -
Playback Mode
Loop playback mode is supported -
Video Format
MP4、AVI、MKV -
Video Input
HDMI -
Audio Format
MP3、WMA、AAC -
Speaker
Two-channel 2*10w -
USB port
USB3. 0*2 /USB2. 0*2 / RJ45*1 -
Touch interface
USB-B*1 (rear side)/USB-B*1 (front), not valid at the same time
Operating Environment/Power Supply
-
Service Life
5000hr -
Operating Temperature
0℃～ 40℃ -
Operating Humidity
20~80% RH (no condensation） -
Storage Temperature
-5℃～ 45℃ -
Store Humidity
20~ 90% RH (no condensation) -
Voltage
100~ 240VAC（50～ 60Hz） -
power Consumption
Max 235W
Installation and packaging
-
Appearance size (bare metal)
1644*1050*240mm -
Net Weight
70kg -
Gross Weight
85kg -
Installation
Wall-mounted, mobile bracket (optional)
-
